The only Linear High Bay fixture in the industry featuring an All-In-One 120-480v driver. This revolutionary fixture also incorporates 2 beam patterns in one lens allowing you to switch from Standard to Aisle distribution with NO TOOLS – IN SECONDS.
FEATURES:
- Wattage Selectable - (3 levels per model)
- CCT Selectable - 40000K or 50000K
- Field Selectable Distribution - 90º x 90º for general area or 45º x 110º for aisles
- Wide Operating Voltage Range - 120 - 480V
- 0-10V dimming
- Emergency battery back-up available
- Optional sensors and controls available (see below)
- Compatible with LiteSmart mobile app
- DLC 5.1 Premium
- 100,000 hour rated life
Models
| Catalog Number | Size | Lumens | Watts | Color Temp | Voltage |
| LHBP115 | 11" x 15" | 12,000/14,000/18,000 | 78/90/115 | 40K/50K | 120-480V |
| LHBP155 | 11" x 15" | 12,000/18,000/24,000 | 78/115/155 | 40K/50K | 120-480V |
| LHBP195 | 12" x 20" | 18,000/24,000/30,000 | 115/155/195 | 40K/50K | 120-480V |
| LHBP245 | 12" x 20" | 30,000/36,000/40,000 | 185/225/245 | 40K/50K | 120-480V |
| LHBP385 | 13" x 27" | 45,000/53,000/61,000 | 290/330/385 | 40K/50K | 120-480V |
| LHBP420 | 13" x 27" | 50,400/57,600/67,000 | 315/360/420 | 40K/50K | 120-480V |

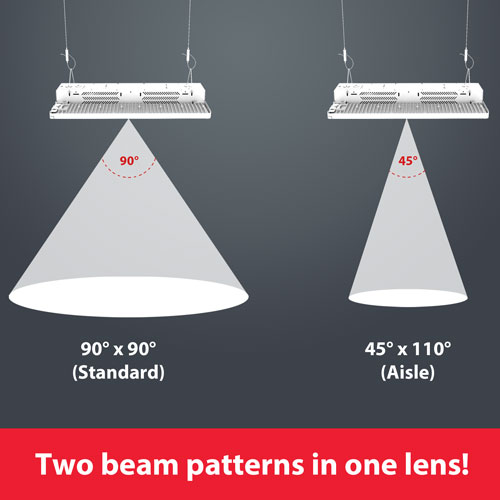

Field Adjustable Beam Patterns
Sensors and Controls
 |
SC005 Plug-in PIR Sensor enables occupancy sensing on pluggable fixtures. |
 |

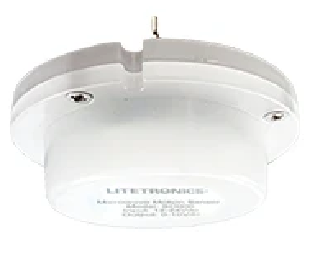

SC006 Plug-in Microwave Sensor enables occupancy sensing on pluggable fixtures. (MTO Only) |
 |

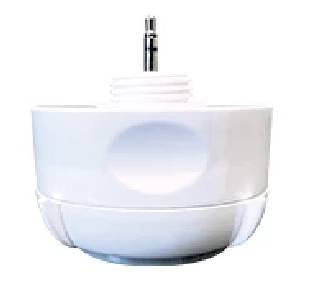

SC008 Plug-in Bluetooth PIR Sensor with IR. This sensor enables wireless control of fixtures, or groups of fixtures, through the LiteSmart mobile app. |
 |

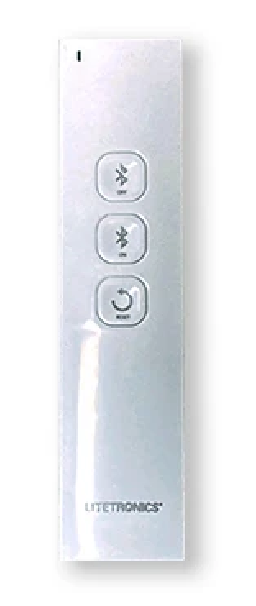

SCR054 Use the SCR054 Remote Control to Commission Litetronics "Next Generation" LiteSmart IR Enabled Sensor. |
 |

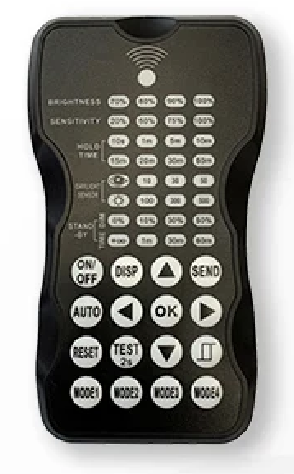

SCR053 The Remote Control enables device modifications to be made remotely, without the use of ladders or lifts and can communicate with fixtures. |
Download Litetronics LHBP Spec Sheet
Download Litetronics LHBP Brochure
