Aluminum Wire & Cable

Type XHHW-2 conductors are primarily used in conduit or other recognized raceways for services and feeders as specified in the National Electrical Code (NEC). XHHW-2 conductors may be used in wet or dry locations. XHHW-2 conductors are rated for 600 and 1,000 volt applications. Per c(UL) specifications, RW90 conductors are rated for 600 volt applications. They are made with 8000 series aluminum alloy and cross-linked polyethylene insulation is applied. All sizes are made with a friction-reducing compound to aid in the installation process.

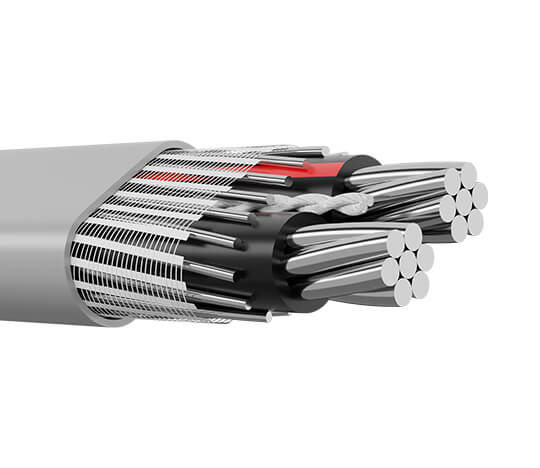

Alan Wire type SEU cable is used to deliver electrical service from the service head to the house meter. Compact stranded 8000 series aluminum alloy conductors. XHHW-2 insulated conductors laid in parallel. Bare conductor strands are helically wound around the two parallel conductors.

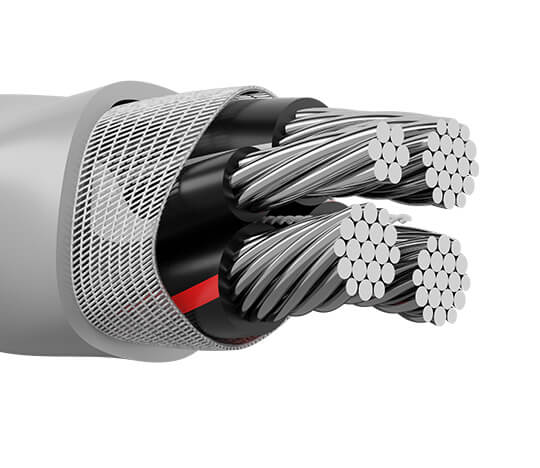

Alan Wire type SER consists of two insulated conductors with an insulated neutral and bare ground of compact stranded 8000 series aluminum alloy conductors. XHHW-2 insulation on individual conductors.
